55 Inch Wall Mounted Interactive All In One PC LCD Display
1, Main Features :
► Original Full HD LED panel.
► Embedded(industrial PC) Dual core Win7/8 OS.
► Built-in infrared touch screen, latest high precision touch
technology, strong stability and sensitive response.
► Intel i3 high-speed processor, 4Gb memory, 500Gb hard drive,
efficiency deal with real 1080P video files and all kinds of big
► Real time management and controlling, FTP breakpoint upload and
download, multi-mode upload supported.
► Interpolation resolution is 32,767 x 32,767, Supporting plug
& play, fast scanning speed.
► iPhone appearance design, silver aluminum alloy frame, full metal
► Frame equipped with toughed glass, Abrasion resistance, prevent
scratch and damage.
2, Product introduction :
This kind machine usually built-in PC, you can consider it as a
large computer with touchscreen function. Besides, you can install
your own software to get what you need. Actually, you can see this
kind product around you here and there. Some one special
application software installed on this kind machine, you can touch
the screen to query some information from web page or perform an
operation via software. As you seen, interactive Application
represent a major trend in the futures market.
We offer flexible choice of PC configuration according to your
limited buget, we also can ofer OEM/ODM service for you. We have
best price and quality when you offer bulk order, with the cheap
shipment by air or by sea. We also offer cheaper price Android
hardware & OS for your choice.Besides, we can also ooder you
only the kiosk touchscreen monitor. We will leave a special
dimension space on the back of machine, you can place your choice
of mini PC with different configuration requirements. and then
connect mini PC with touchscreen monitor via VGA or HDMI port. In
most case, only PC parts is prone to deficiency for whole hardware.
This solution isolate PC and other hardware parts, so that you can
find the failure cause quickly when technicians maintenance the
|Item||1037U Solution||i3 Solution||i5 Solution||i7 Solution|
|HDD||2.5 inch 500GB SATA HDD (HDD capacity & SSD can be customized)|
|LAN||10/100/1000M Auto-adjust Gigabit Ethernet included|
|WIFI||150Mbps 802.11n included|
|Audio||HD 8(7.1) Channel Audio System|
|Speaker||2 X Built-in High Quality Stereo Speakers|
|I/O Ports||4 X USB Ports included(HDMI, DVI, VGA in/out ports optional)|
|Other Options||DVD-RW,mOUSE/keyboard set, webcam, Thermal Printer, Bluetooth, TV
We will default I3 processor as standard configuration of internal
PC for touchscreen PC if you have no special configuration
requirements in your inquiry, besides, For this kind interactive
display equipment, high quality touchscreen panel is key to the
3, The instruction for Touchscreen Panel
We usually default infrared touchscreen panel(2 points) with these
feature for our machine as follows :
1,Super Touch speed up to 300 dots/second(3ms) brings you an
experience of free touch .
2,Function of automatic detecting and correcting guarantees stable
working within 2 seconds once any equipment failure is caused by
3,Positioning precision is limited within 1mm thanks to adapting of
D precision promoting technology and Automatically compensate the
touch sensing at four edges, making touching at edges easier.
4, Supporting automatical adjusting of touch according to dust,
making less impact caused by dust.
|Touch Max Resolution||4096 X 4096|
|Transparency||>90% ; Up to 100%|
|Scanning Speed||>50s scans/S|
|Touch type||Vertical Multiple Dot Touch screen|
|Min Touch object||5m|
|Touch intensity||Over 60,000,000 Single Point Touch|
|Operation System||Win7 or Win8.1,Win10|
|Operating Voltage||DC, 5V 5%|
|Power Supply||Keyboard Serial Interface|
|Power||<1W(Current < 200mA)|
|Communication||RS-232 interface Port, USB port|
|Vandal-Proof||Steel Ball (Diameter 63.5mm 1040g weight) drop from 1040mm , No
|Temperature Operating||below 41℃~70℃|
|Temperature Storage||below 50℃~85℃|
|Life Time||>10 year|
4, The Product Specification
|Display area(mm)/mode||684(H) X 1214(V)|
|Maximum resolution||1080 X 1920|
|Power Supply||AC 100~240V|
|Standy Power Consumption||0.3W|
|Working Temperature||0℃ ~ 40℃|
|Storage Temperature||below 20℃~60℃|
Iphone4 screen, Tempered glass panel Enclosure
( other type or coloris option)
|Max Power Consumption||340W|
|The machine body dimension(Lx W x H)mm||1920x805x70|
|Net weight||70 kg/pcs|
|Gross weight||112 kg/pcs|
|Outer Packing size||2060x980x280mm|

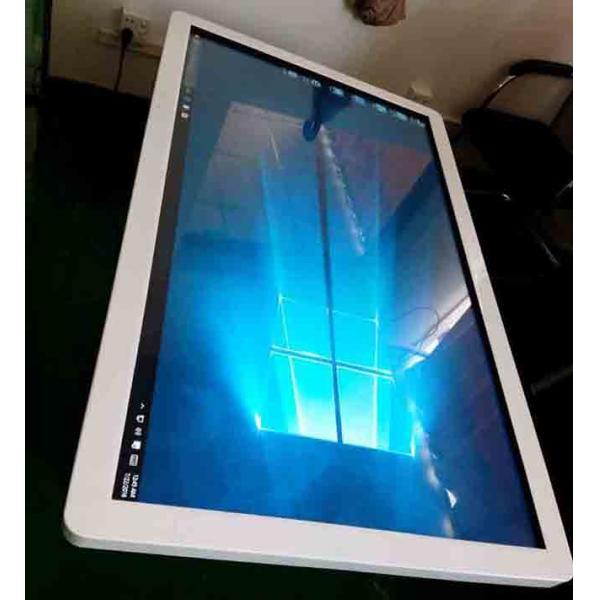

5, Stock Factory physical product photo
If you have any other questions, please contact our salesman as
soon as possible.
