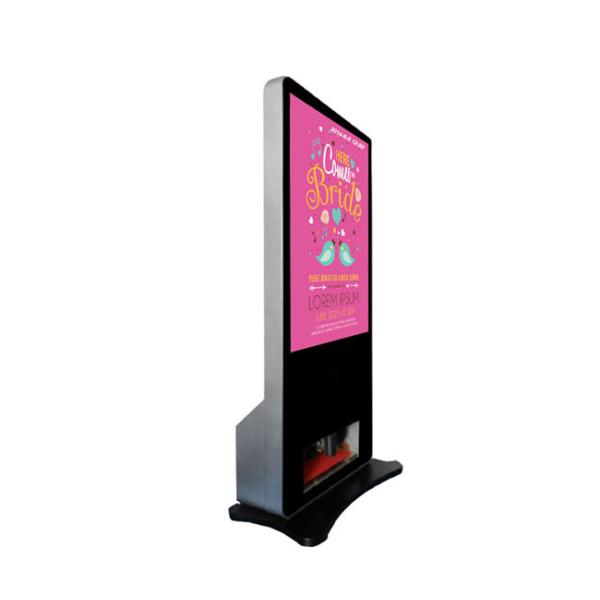

Digital Signage Kiosk 42 Inch Touch Screen Monitor Circulation Play Mode

SHENZHEN WAN JIA AI ELECTRONIC TECHNOLOGY CO.,LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

Digital Signage Kiosk 42 Inch Touch Screen Monitor Circulation Play Mode

Brand Name : Felehoo
Model Number : FH-KU420CSP
Certification : CE/ROHS/FCC
Place of Origin : China
MOQ : 1pcs
Price : Negotiation
Payment Terms : T/T, Western Union, MoneyGram
Supply Ability : 3000pcs per month
Delivery Time : 5~10 working days after your confirmation
Packaging Details : Packed in carton firstly, reinforced with wooden case as outer package
Panel size : 42"
Max Resolution : 1080 X 1920
Display area(mm)/mode : 521mm(H) X 927mm(V)
Pixel Pitch(mm) : 0.484(H)×0.484(V)
Brightness (nits) : 350cd/m2
Contrast : 1000:1
Contact Now

Digital Signage Kiosk 42 Inch Touch Screen Monitor Circulation Play Mode


1, The working Principle of Standalone version digital signage :


The PCB support Plug-and-Play function. You need save those ads content in USB memory card firstly, and then, when you plug memory card into the card slot, the screen will auto display video or photo. When you need update ads content in original USB memory card, you only need use USB copy by manual operation .


2, The specification of internal Standalone version media player


Main FeaturePlug-and play, Auto loop play when power on
ChipsetMCU
RAM512
OSLinux
NetworkNo
Input card slot2 x USB2.0
Storage MediaDefault USB(SD card is optional)
Download MediaAuto copy from USB
External storageSupport 2G ~ 32GB
OSD languageChinese / English
Display EffectSupport 720P/1080P Full HD video/Photo
Support Video FormatsAVI,MPEG1,MPEG2,MPEG4,VOB and DIVX(5.0/6.0)
Support Audio FormatsMP3
Support Photo FormatsJPG
Support Doc formatsTXT
Audio OutputBuilt-in Power amplifer
Playback ModeRepeat one/all, choose to repeat playback one file or all the files
Power SupplyAC 100~240V


3, The Product Specification :


Panel size42"
Display area(mm)/mode521(H) X 927(V)
Maximum resolution1080 X 1920
Display color16.7M
Pixel Pitch(mm)0.484(H)×0.484(V)
Brightness (nits)350cd/m2
Contrast1000 : 1
Visual angle178/178/178/178°
Response time8ms
Life(hrs)50,000(hrs)
Max Power Consumption240W

4, The Features of Standing advertising display(Standalone Version)


Ads updated type

USB copy by manual operation
Plug-and-PlayPlug-and-play /No windows OS, Auto loop play when power on
Playback ModeRepeat one/all, choose to repeat playback one file or all the files
Daily timer switchPower can turn on/off automatically at the designated time every day
Play logsAuto generate all detailed play record in memory card
Photo slide showThe interval time can be adjusted, 5s/10s/15s/30s/60s/120s/180s is optional
Date-time display

Built-in Clock and Calendar, After you setting up date/ time, it can show them

Timing functionIt can create five sets of timing periods a day, settable in a week(7 days) with 24hours unmanned management
DIY Boot ScreenUser can use any JPG picture files as boot screen, or even video capture
Logo Display

User can make a JPG picture(240X240 pixel) of own logo,the upper left-hand corner

of screen will show this logo when play video or photo.

Playlist Function

We can offer you playlist software, you can edit those ad files which stored in memory

card, it will automatically play them one by one in the specified order

Scrolling marqueeYou can set up background color,font size and how fast marque scrolling
Ads spots

Some one advertisement(like your company promotion video) can auto insert into the

one which is curently playing video ads,you can set up the interval time, such as 10

minutes or 20minuts

Split-screen

Free to split screen, many mode to select(options are full screen,two split screens,three

split screens and so on) according to your needs.

Breakpoint memory

Enabling resumption of playing the present playing content on breakpoint memory which

the machine automatically recorded in case of breaking.

Time VolumeUser can set up different volume at different times, different db volume for morning and night separately, or holidays and special occasions.
Anti-theft lockIt can prevent U disk and broadcast content from theft, At the same time, the content can be encrypted.
Scratch-resistantScreen surface with ultra-thin, high-transparency toughened glass or acrylic protection layer to protect the LCD screen from artificial damage
InstallationStanding (An optional that we can install wheels to make the machine more mobile unless you need)


5, Product introduction:


42 inch Kiosk floor standing Advertisement Screen is a LCD Display with an integral media player, Media files are stored and played back from internal SD card. When you boot the machine up, it would auto read those files (video/photo)from memory card simple one. Ad content can be created easily via wifi digital signage which allow advertisers to combine audio, video, image and interactivity by themselves. Digital signage are used for many different purposes. It helps to engage users and also helps advertisers to gain insight in customer behaviors. Ad contents displayed on the signage is presented in one of the following formats:


A, Text - Scrolling text. Either scrolling text, or text dynamically updated via external newsfeed source.

B, Images - Scrolling images, usually in the format of digital advertisement posters.

C, Video - Usually in the format of commercial TV advertisements.


If you have any other questions, please contact our salesman as soon as possible.




Email : kevin@vcaminition.com


Skype ID : +8618814488091


Whats App ID : +8618814488091


Wechat ID : felehoo


Twitter ID : Vinition


Facebook ID : kevin518112


Linkedin ID : 18814488091
